AMSPLM 230 Electric Flat Die Pellet Mill


With this pellet mill, you can make softwood pellets as well as feed pellets, with capacity 150-190kg/h for making wood pellets, 300-400 kg/h for making feed pellets.


Wood pellets 150-190kg/h
Feed pellets 300-400kg/h


low price pellet mill

AMSPLM 230 Electric Pellet Mill Specifications

Model Capacity Power Dia. Of die mould Packing Size
AMSPLM-230 Wood pellets 150-190kg/h
Feed pellets 300-400kg/h
11 kw 230mm 1140*470*970mm

 Note: Three-phase voltage–380v/50Hz

AMSPLM 230 Flat Die Pellet Mill Introduction
Electric flat die pellet mill is driven by electric motor which makes it more energy-saving and environmentally friendly. This electric flat die pellet mill is smaller in size, design and structure with capacity 150-190kg/h for making wood pellets, 300-400 kg/h for making feed pellets. Roller and flat die are made from precise material of alloy metal which makes this core part wear-resistant and not easy to break. With this pellet mill, if you want to make biomass pellets, you would better use relatively soft materials, as the machine design is stationary rollers and a running die mould. Ready-to-get raw agro waste materials are sawdust, wood chips, peanut shell, wheat straw, cotton, barley, branch, rice husk, sunflower stalk, palm kernel shell and many other materials.

Electric Flat Die Pellet Mill Features

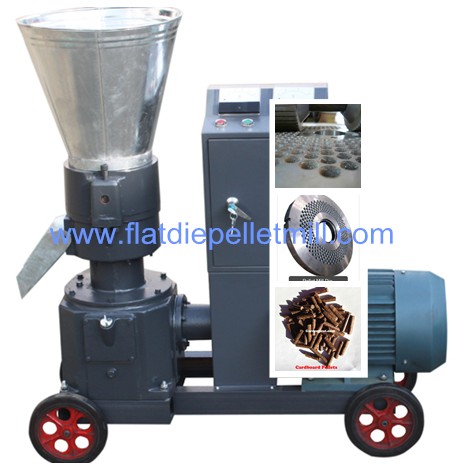

die running wood pellet mill1. Quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, able to change new die and rollers fast and conveniently according to your needs.
2. Visibility. It is possible to view into the chamber when pelletizing, so you can solve problem in time.
3. Simple operation, easy maintenance and perfect technical design with less labor.
4. Small and light weight which make it widely used in home, small farm.
5. Geat for processing soft wood pellets and feed pellets

How to Choose A Perfect Flat Die Pellet Machine
Flat die pellet mill takes the circular motion as the principle. The press roller, main shaft and die mould are of high quality alloy steel. There are common two design of flat die pellet machines: rotating rollers with stationary die or running die with stationary rollers. Though the two kinds of pellet mills can both make wood pellets and feed pellets, there is slightly difference. Roller driven pellet machine is more suitable for making biomass pellets, especially for making hardwood pellets; die driven pellet making has good performance in making feed pellets and soft wood pellets. Then, let us talk about the engine of pellet press. There are two choices, flat die pellet mill with electric motor and flat die pellet mill with diesel engine. Electric pellet mill is more energy-saving and environmental protection, while you must make sure there is enough electricity in your pellet making sites.

The Superiorities of Wood Pellets

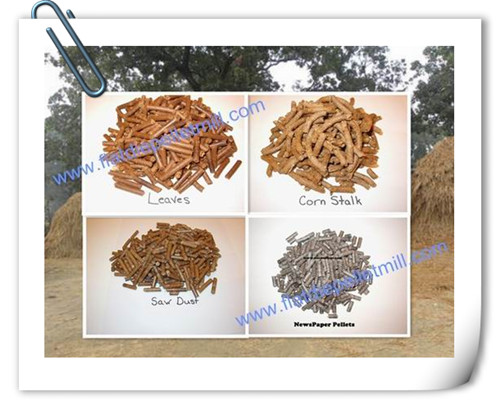

sawdust pelletsWood pellet is becoming more and more popular. Compared with the traditional fuels, wood pellets have their own advantages as follows.
1. Wood pellets have a high calorific value, ranging from 3900-4800 kilocalorie/kg. The carbonized pellets’ calorific value even can reach to 7000-8000 kilocalorie/kg.
2. Wood pellets have high purity, and containing no other sundries which can’t generate heat. The carbon content is 75-85%, ash content is 3-6%, and moisture content is 1-3%. The sundries, such as gangue and stone are not contained in the wood pellets, which will lower the cost directly. Because of the gangue and stone, they will burn calorific instead of generating heat.
3. There is no sulfur and phosphorus produced in the combustion of wood pellets, so there is no need to worry about corrosion of the wood pellet boiler, thus benefits the boilers service life.
4. Nearly no harmful gas generated during the burning of wood pellets, so it’s eco-friendly.
5. Wood pellets are clean and hygiene fuel, and the feeding is convenient, which has largely decreased the labor intensity of the workers. This advantage greatly improves the work environment and will lower the enterprise cost on employing in a certain degree
6. The ashes of burnt wood pellets are potash fertilizer with high value, so they can be recycled and make profits in return.

Best electric flat die pellet mills for sale. CE Certified pellet machine; Low pellet machine price. Buy from flatdiepelletmill.com, enjoy great after-sale service free!
